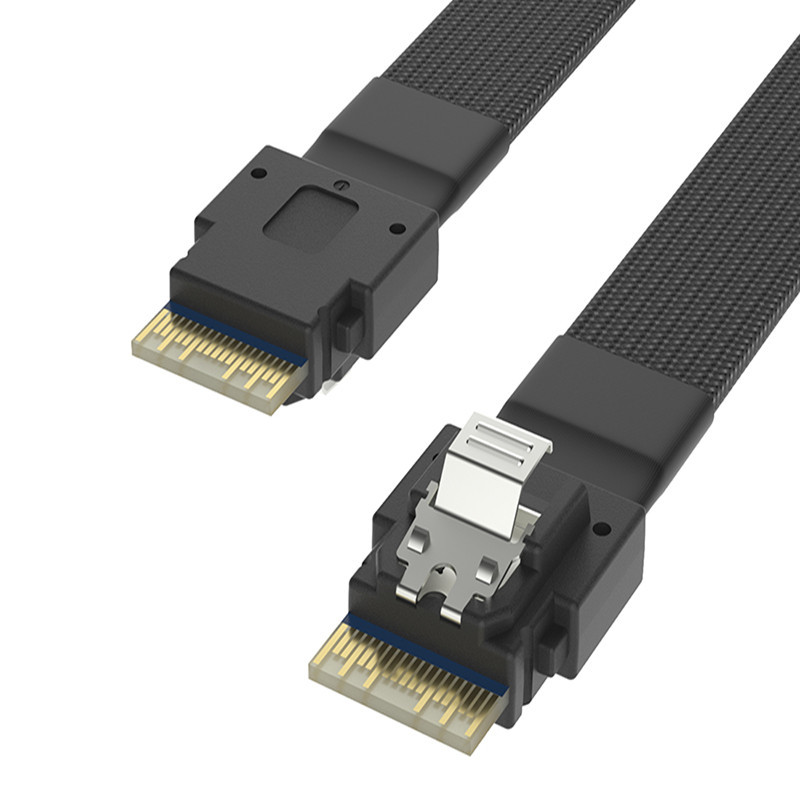

Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. The SAS interface could be compatible with SATA. SAS adopts serial technology to obtain higher transmission speed, and internal space is improved by shortening connecting wires to achieve easier configuration. SAS cables are mainly used for data storage centers, servers, workstations.
SAS continues the innovation of SCSI, with a new level of scalability, flexibility and cost-effectiveness, providing users with access, data transmission and data storage capabilities.
1. Server
2. Data storage
3. Workstation
1. Smaller-sized connectors and cables save equipment space
2. Provide four-channel signal transmission according to industry standards
3.Data speed: each channel supports UPI 11.2Gbps, SAS 4.0 24 Gbps, 25Gbps and PCIe 4.0 16Gbps
4.Comply with SAS4.0 and SlimSAS SFF-8654 specifications
1. Combining force: 55.5N max
2. Releasing force: 49N max
3. Rated durability period: at least 250 cycles
1.Voltage: 30VDC per contact SlimSAS 4i plug: maximum 80mohm initial, maximum 20mohm after pressure test.
2. Dielectric withstand voltage: minimum 300 VDC, lasting 100 ms
3. Insulation resistance: The minimum value between adjacent pins is 10MΩ
1. Impedance of mating connector: 100 +/- 10% ohm
2. Common mode impedance: in line with SAS4.0 specifications
3. Insertion loss: in line with the SAS4.0 specification,
4. Maximum crosstalk: in line with SAS4.0 specifications
Comply with RoHS 2.0 standard
China RoHS: Yes
Reach SVHC: Yes
1. HPE:CBL-SAST-0824L
2. Lenovo/IBM:CBL-SAST-0824L
3. Supermicro:CBL-SAST-0824L (0.5m)
