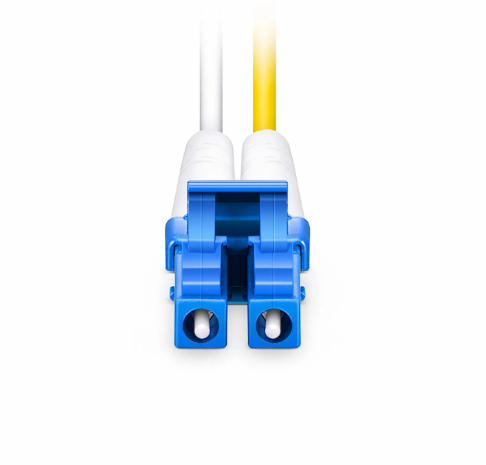

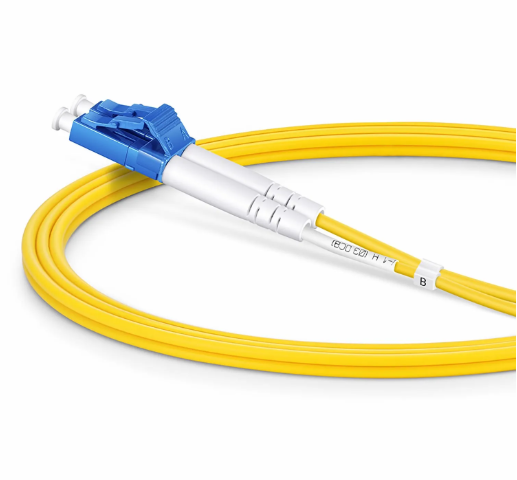

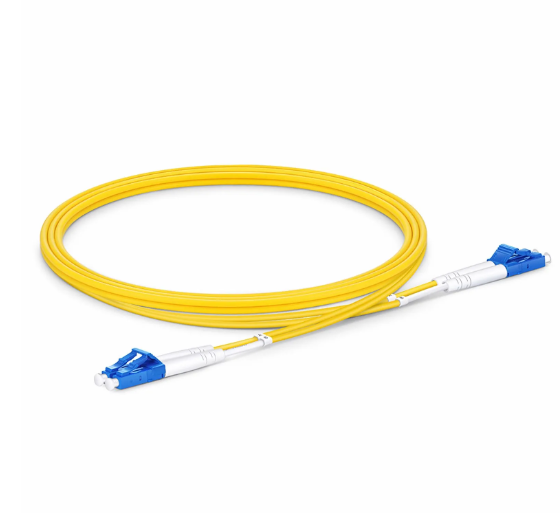

OS2 Single Mode,1m (3ft) Fiber Patch Cable, LC UPC Duplex to LC UPC Duplex, Riser (OFNR), 2.0mm, Tight-Buffered, Yellow

Name: OS2 Single Mode,1m (3ft) Fiber Patch Cable, LC UPC Duplex to LC UPC Duplex, Riser (OFNR), 2.0mm, Tight-Buffered, Yellow
Brand: SkywardCable
Availability: InStock
Rating: 5 (1 reviews)

1m (3ft) Fiber Patch Cable, 2 Fibers, LC UPC Duplex to LC UPC Duplex, Single Mode (OS2), Riser (OFNR), 2.0mm, Tight-Buffered, Yellow

● Product origin: China

● Delivery time: 7 -10 workdays

We are manufacturer that could support you good quality with aggressive price. Believe that we are the best choice for you from many traders and resellers.

Accepted OEM/ ODM

Welcome to send us any of your questions and inquiries, we are more than pleasure to send you more information.

GET A QUOTE

Description

OS2 Single Mode,1m (3ft) Fiber Patch Cable, LC UPC Duplex to LC UPC Duplex, Riser (OFNR), 2.0mm, Tight-Buffered, Yellow

Key attributes

Fiber patch cables provide interconnect and cross-connect of applications over data centers, telecommunication networks, and enterprise environments. Pre-terminated cables allow for the implementation of complete Plug & Play solutions to install even large cabling systems rapidly.
This OS2 fiber patch cable is ideal for connecting 1G/10G/25G/40G/100G/400G Ethernet connections. It offers low signal attenuation and high bandwidth for long-distance transmission.
The bend insensitive fiber patch cable has less attenuation when bent or twisted compared with traditional fiber patch cable and this will make the installation and maintenance more efficient.

Description

Specification

Connector A	LC UPC Duplex	Connector B	LC UPC Duplex
Fiber Count	2 Fibers	Fiber Grade	G.657.A1 (Compatible with G.652.D)
Fiber Mode	OS2 9/125μm	Wavelength	1310/1550nm
Flame Rating	Riser (OFNP)	Cable Outside Diameter (OD)	2.0mm
Polarity	A (Tx) to B (Rx)	Cable Type	Tight-Buffered
Min.Bend Radius (Optical Fiber)	10mm	Min. Bend Radius (Fiber Cable)	10/5D (Dynamic/Static)
Connector Durability	1000 times	Tensile Strength	90/150N (Long/Short Term)
Attenuation at 1310nm	0.4dB/km	Attenuation at 1550nm	0.3dB/km
Operating Temperature	-10 t0 70°C(14 to 158°F)	Storage Temperature	-20 to 70°C(-4 to 158°F)

Features and Benefits

G.657.A1 Bend Insensitive Fiber & 10mm Min. Bend Radius
Precision Zirconia Ferrule Connectors Ensure Low Loss
Flame-Retardant Riser (OFNR) for Vertical and Floor-to-floor Installations
Color-Coded Cable Jacket for Easy Identification
Duplex Zipcord Construction Reduces Risk of Damage from Crimping
Pre-terminated Cable Allows for Implementing Plug & Play Solutions
Exceptional Performance in a Data Center, Telecommunication Networks, or an Enterprise Setting

FAQ

Q1: Can OM1 fiber connect to OM2, OM3, or OM4?
A1: Yes, but performance will be limited to the lowest-grade fiber (OM1).

Q2: What is the difference between OM1, OM2, OM3, OM4, and OM5 fiber?
A2: The main differences are bandwidth, speed, and transmission distance:OM1/OM2: legacy systems,OM3/OM4: high-speed data centers,OM5: optimized for wavelength multiplexing.

Q3: Which fiber type should I choose for my project?
A3: Short distance (<300m): OM3/OM4,Long distance (>1km): Single mode,Legacy system: OM1/OM2.

Q4: What is the maximum distance of fiber optic cables?
A4: Distance varies by type:Multimode: short to medium distance,Single mode: up to tens of kilometers.

Q5: Are LC, SC, and ST connectors interchangeable?
A5: No. You must use matching connector types or adapters.
