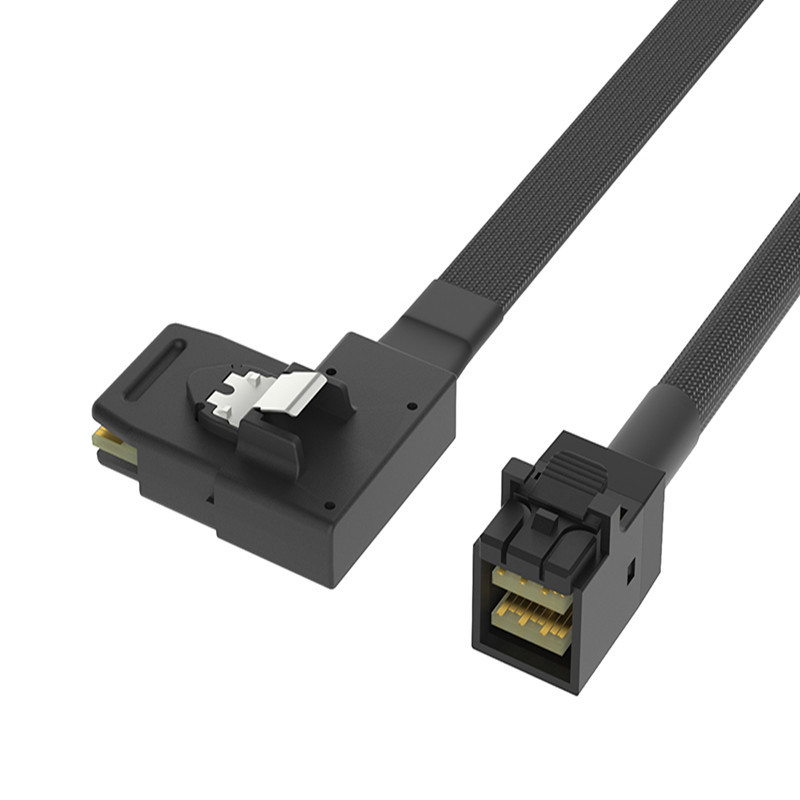

Mini SAS SFF-8087 Right Angle to SFF-8643 Cable
Key attributes
Mini SAS SFF-8643 to Right Angle SFF-8087 Cable is a new generation of high-density interface, wider bandwidth, larger capacity and faster data transition.
SFF-8643 is the new connector that uses less PCB real estate and allows higher port density for internal hosts and devices.
High-density (HD) mini-sass soff-8643 internal cable assemblies are available for SAS 2.1, 6GB/s and SAS 3.0, 12GB/s specifications.
Compact design doesn’t take up much space, thick braided coat protection &gold-plated ensure secure connection and reliable throughput.
Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. The SAS interface could be compatible with SATA. SAS adopts serial technology to obtain higher transmission speed, and internal space is improved by shortening connecting wires to achieve easier configuration. SAS cables are mainly used for data storage centers, servers, workstations.
SAS continues the innovation of SCSI, with a new level of scalability, flexibility and cost-effectiveness, providing users with access, data transmission and data storage capabilities.
Description
Application data/communication
1. RAID (Redundant Array of Independent Disks)
2. Workstation
3. Rack Server
4. Server
5. Storage shelf
Features and benefits
1. The sending rate is 12 Gbps.
2. Comply with SAS3.0 revision 5a specification.
Mechanical behavior
Fit and non-fit
Conditions: EIA 364-13. Insert and extract at a speed of 25 mm/min.
Mating power: 100N maximum.
Relieving force: 50 nautical miles maximum.
Compatible branded servers
1. Dell: 09H6PH
2. HPE: 818129-B21
3. Lenovo/IBM:00YF295
4. BroadCom:05-50008-00
Electrical performance
1. Contact current rating
0.5 Maximum ampere per needle when mating.
2. Voltage level
30 volts per contact when mating or not mating.
3. Contact resistance
After the stress test, the maximum initial is 30mohm and the maximum is 15mohm.
4. Withstand medium voltage
500 volts, no failure in 1 minute.
5. Insulation resistance
At least 1000 moms.
Signal integrity
1. Matching connector impedance: 100 ohm ± 15%
2. Absolute cable impedance: 100 ohms ± 10%
3. Cable pair matching: ±5 ohm
4. Common mode impedance: 25 to 40 ohms
5.Insertion loss: -6Db up to 4.5Ghz; 11Db up to 9Ghz
6.Crosstalk: -35dB up to 6GHz
Product environmental regulations
Rohs2.0: compatible
China Human Rights Association: Yes
REACH SVHC: Yes
