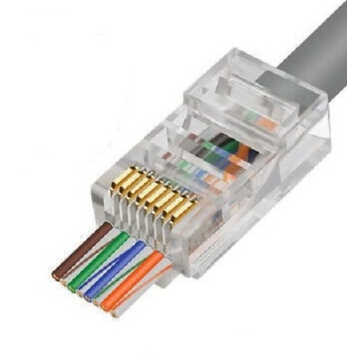

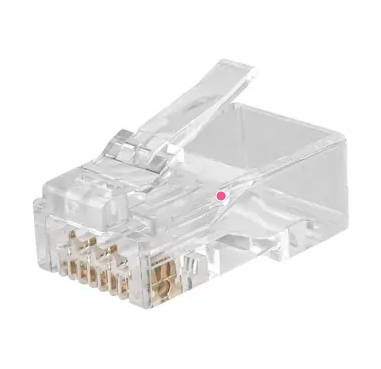

The EZC6AUTP Connector is a high-performance pass-through RJ45 connector designed for CAT6A U/UTP Ethernet cables. Engineered for larger CAT6A conductors and cable diameters, it allows wires to pass through the front of the connector for easy verification and faster termination. The connector supports high-speed 10 Gigabit Ethernet networks and PoE applications while ensuring reliable signal integrity and installation efficiency.
| Item | Specification |
|---|---|
| Product Name | EZC6AUTP Connector |
| Connector Type | RJ45 8P8C Pass Through |
| Category | CAT6A |
| Shielding | U/UTP (Unshielded) |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated |
| Housing Material | Polycarbonate (PC) |
| Conductor Type | Solid & Stranded |
| Cable Gauge | 22–24 AWG |
| Wiring Standard | T568A / T568B |
| Network Speed | 10GBASE-T |
| Application | Ethernet, PoE, PoE+, PoE++ |
| Packaging | 50pcs / 100pcs / OEM |
Q1: What is the EZC6AUTP connector?
A1: The EZC6AUTP is a pass-through RJ45 connector designed specifically for CAT6A UTP Ethernet cables, enabling faster and more accurate cable termination.
Q2: Is it compatible with solid and stranded conductors?
A2: Yes. It supports both solid and stranded conductors commonly used in CAT6A Ethernet cables.
Q3: Why use a pass-through connector?
A3: Pass-through connectors simplify installation by allowing installers to verify wire order before crimping, reducing termination errors.
Q4: Can it be used for PoE++?
A4: Yes. It supports PoE, PoE+, and PoE++ when used with compatible CAT6A cables.
Q5: Does the length of a network cable affect network speed?
A5: Cat5e supports a maximum length of 100 meters, while Cat6 supports 10Gbps over a maximum distance of 55 meters. Exceeding these standard lengths may lead to signal attenuation and a reduction in network speed.
