| Parameter | Specification |
|---|---|

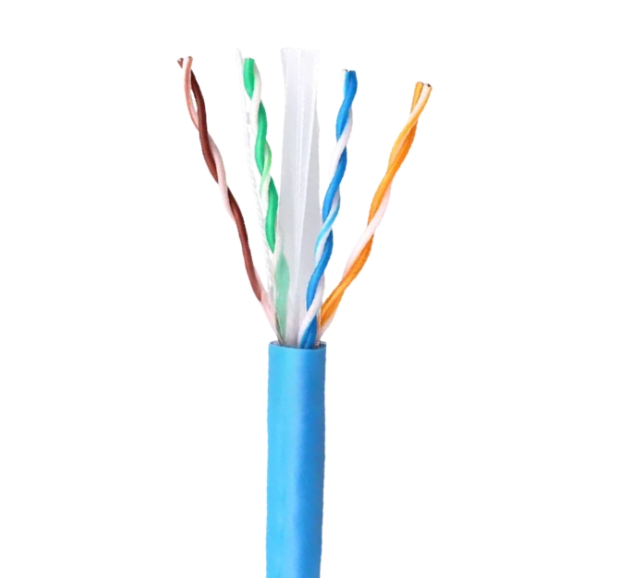

| Product Name | CAT6 U/UTP Ethernet Cable |
| Category | Cat6 |
| Cable Type | U/UTP |
| Conductor Material | 100% Oxygen-Free Bare Copper |
| Conductor Size | 23 AWG |
| Number of Pairs | 4 Pairs |
| Shielding | Unshielded |
| Insulation Material | HDPE |
| Jacket Material | PVC / LSZH / PE |
| Bandwidth | 250 MHz |
| Standard Length | 305m (1000ft) |
| Compliance Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Color Options | Blue, Grey, White, Black, Yellow |
| Packing Options | Pull Box, Reel, Wooden Drum |
| Component | Description |
|---|---|
| U | Unshielded Overall Construction |
| UTP | Unshielded Twisted Pairs |
| Model | Conductor | Jacket | Application |
|---|---|---|---|
| CAT6 U/UTP PVC | OFC | PVC | Indoor Installation |
| CAT6 U/UTP LSZH | OFC | LSZH | Public Buildings |
| CAT6 U/UTP Outdoor | OFC | PE | Outdoor Networks |
| CAT6 U/UTP Direct Burial | OFC | PE | Underground Installation |
Q1: What is the difference between CAT6 and CAT5e?
A1: CAT6 offers higher bandwidth (250MHz vs. 100MHz), better crosstalk performance, and supports 10GBASE-T transmission up to 55 meters.
Q2: Does this cable support PoE and PoE++?
A2: Yes. The cable supports PoE, PoE+, and PoE++ applications.
Q3: What is the standard packing length?
A3: 305m (1000ft) pull box is standard. Custom lengths are available.
Q4: Does the length of a network cable affect network speed?
A4: Cat5e supports a maximum length of 100 meters, while Cat6 supports 10Gbps over a maximum distance of 55 meters. Exceeding these standard lengths may lead to signal attenuation and a reduction in network speed.
