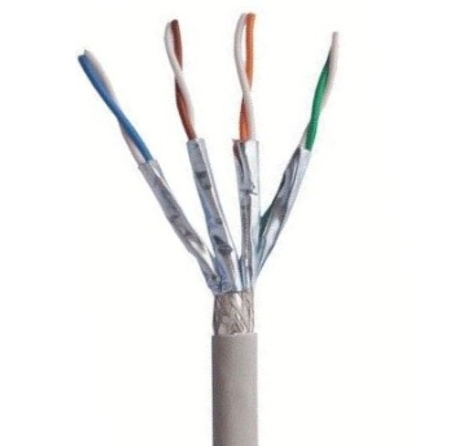

CAT6 S/FTP Ethernet Cable
Details
Specification
| Parameter |
Specification |
| Product Name |
CAT6 S/FTP Ethernet Cable |
| Category |
Cat6 |
| Cable Type |
S/FTP |
| Conductor Material |
100% Oxygen-Free Bare Copper |
| Conductor Size |
23 AWG |
| Number of Pairs |
4 Pairs |
| Pair Shielding |
Aluminum Foil Shield |
| Overall Shielding |
Tinned Copper Braided Shield |
| Insulation Material |
HDPE |
| Jacket Material |
PVC / LSZH / PE |
| Operating Temperature |
-20°C to +75°C |
| Standard Length |
305m (1000ft) |
| Compliance Standards |
ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Color Options |
Blue, Grey, Black, White |
| Packing Options |
Pull Box, Reel, Wooden Drum |
Features and Benefits
- 100% Oxygen-Free Bare Copper Conductors
- Individually Foil-Shielded Pairs
- Overall Tinned Copper Braided Shield
- Superior EMI & RFI Protection
- Supports Gigabit Ethernet & 10GBASE-T
- 250MHz Bandwidth
- Compatible with PoE, PoE+ & PoE++
- Excellent Crosstalk Suppression
- Available in PVC, LSZH & PE Jackets
- OEM & Private Label Solutions
What Does S/FTP Mean?
| Component |
Description |
| S |
Overall Braided Shield |
| FTP |
Individual Foil Shield on Each Pair |
Available Variants
| Model |
Conductor |
Jacket |
Application |
| CAT6 U/UTP PVC |
OFC |
PVC |
Indoor Installation |
| CAT6 U/UTP LSZH |
OFC |
LSZH |
Public Buildings |
| CAT6 U/UTP Outdoor |
OFC |
PE |
Outdoor Networks |
| CAT6 U/UTP Direct Burial |
OFC |
PE |
Underground Installation |
FAQ
Q1: What is the difference between CAT6 S/FTP and CAT6 F/UTP?
A1: CAT6 F/UTP uses one overall foil shield, while CAT6 S/FTP includes both an overall braided shield and individual foil shielding for each pair, providing significantly higher EMI protection.
Q2: Is this cable suitable for industrial environments?
A2: Yes. CAT6 S/FTP is recommended for environments with heavy electrical equipment, motors, and high levels of electromagnetic interference.
Q3: Does this cable support PoE and PoE++?
A3: Yes. The cable supports PoE, PoE+, and PoE++ applications.
Q4: Does the length of a network cable affect network speed?
A4: Cat5e supports a maximum length of 100 meters, while Cat6 supports 10Gbps over a maximum distance of 55 meters. Exceeding these standard lengths may lead to signal attenuation and a reduction in network speed.
