| Parameter | Specification |
|---|---|

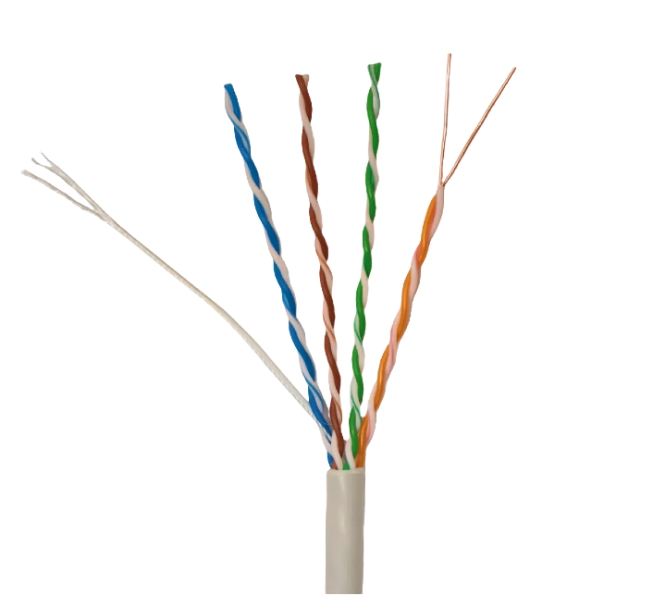

| Product Name | CAT5e U/UTP Cable |
| Category | Category 5e |
| Cable Type | U/UTP (Unshielded Twisted Pair) |
| Conductor Material | 100% Oxygen-Free Bare Copper |
| Conductor Size | 24 AWG |
| Number of Pairs | 4 Pairs |
| Insulation Material | HDPE |
| Jacket Material | PVC / LSZH / PE |
| Transmission Speed | Up to 1000 Mbps |
| Operating Temperature | -20°C to +75°C |
| Installation Temperature | 0°C to +50°C |
| Standard Length | 305m (1000ft) |
| Compliance Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Flame Rating | Optional |

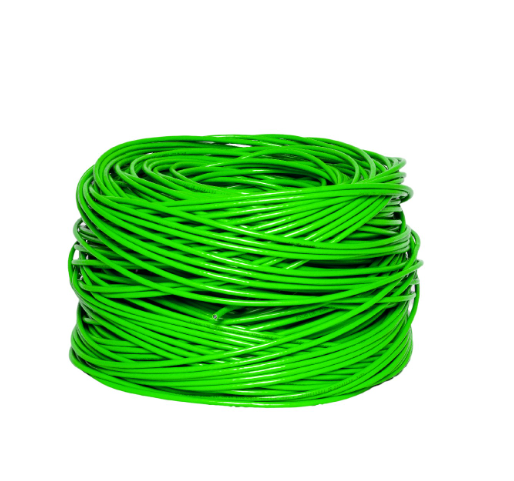

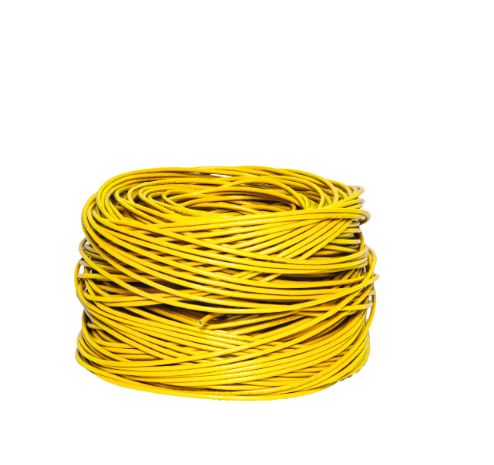

| Color Options | Blue, Grey, White, Black, Yellow |
Q1: What is U/UTP Cable?
A1: U/UTP stands for Unshielded / Unshielded Twisted Pair. It contains four twisted pairs without additional shielding and is suitable for most indoor network installations.
Q2: Is this cable made of pure copper?
A2: Yes. We use 100% oxygen-free bare copper conductors. No CCA material is used in our standard OFC series.
Q3: Which should enterprises choose: "Pure Copper" or "CCA" network cables?
A3: Pure Copper cables offer superior conductivity and durability, making them suitable for long-term enterprise cabling installations; CCA (Copper-Clad Aluminum) cables are inexpensive but suffer from poorer performance and durability, and are therefore not recommended for critical network applications.
Q4: Does the length of a network cable affect network speed?
A4: Cat5e supports a maximum length of 100 meters, while Cat6 supports 10Gbps over a maximum distance of 55 meters. Exceeding these standard lengths may lead to signal attenuation and a reduction in network speed.
Q5: Is it important to ensure compatibility between network cables, switches, and routers?
A5: It is extremely important. The category rating of the network cable should match the speed capabilities of the connected devices; otherwise, the network will be unable to achieve its full performance potential.
