| Parameter | Specification |
|---|---|

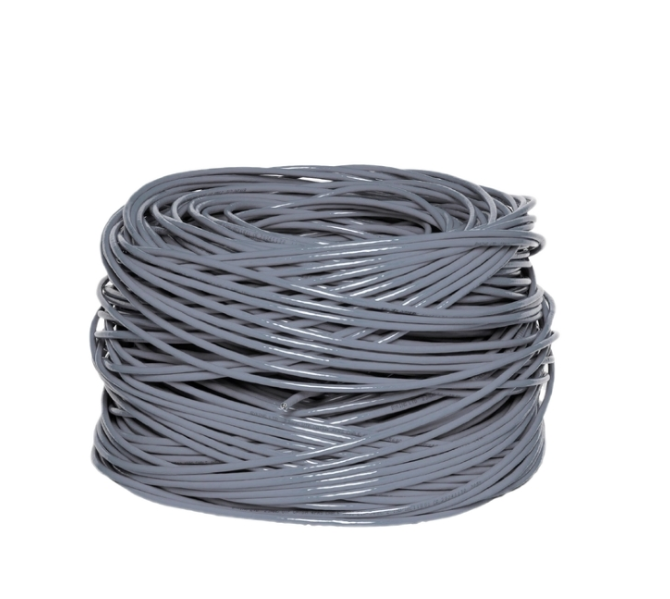

| Product Name | CAT5e S/FTP Ethernet Cable |
| Category | Cat5e |

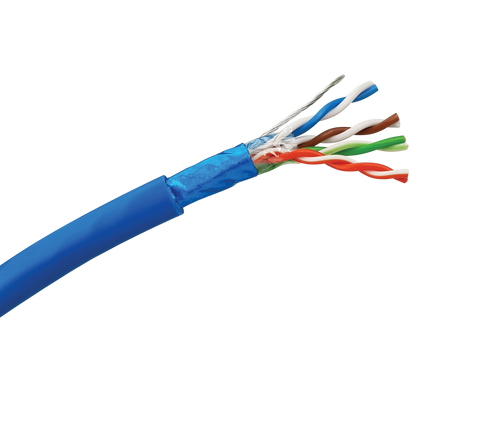

| Cable Type | S/FTP |
| Conductor Material | 100% Oxygen-Free Bare Copper |
| Conductor Size | 24 AWG |
| Number of Pairs | 4 Pairs |
| Pair Shielding | Aluminum Foil Shielded |
| Overall Shielding | Tinned Copper Braid |
| Insulation Material | HDPE |
| Jacket Material | PVC / LSZH / PE |
| Characteristic Impedance | 100 ± 15Ω |
| Operating Temperature | -20°C to +75°C |
| Standard Length | 305m (1000ft) |
| Compliance Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 |
| Color Options | Blue, Grey, Black, White |
Q1: What Does S/FTP Mean?
A1: S-Overall Braided Shield;FTP-Each Twisted Pair Individually Foil Shielded;
Q2: Is this cable made of pure copper?
A2: Yes. We use 100% oxygen-free bare copper conductors. No CCA material is used in our standard OFC series.
Q3: What is the difference between UTP and S/FTP cable?
A3: UTP cables have no shielding, while S/FTP cables feature both individual foil shielding for each pair and an overall braided shield, providing superior protection against electromagnetic interference.
Q4: Does the length of a network cable affect network speed?
A4: Cat5e supports a maximum length of 100 meters, while Cat6 supports 10Gbps over a maximum distance of 55 meters. Exceeding these standard lengths may lead to signal attenuation and a reduction in network speed.
Q5: Is LSZH jacket available?
A5: Yes. PVC, LSZH, and PE jacket options are available based on project requirements.
